Monitor Lifts

Commission Date: 17/06/2019
The Monitor 2714 Spider Lift never ceases to impress with its huge up-and-over outreach.
At only 1.99 m stowed height, this Spider Lift delivers the most reach from the smallest dimensions.
An unbeatable machine for confined area access to taller heights. The tracks expand to 1290 mm for stability offroad, and retract to only 890 mm which allows the 2714 to go anywhere!
Uniquely these Spider Lifts can rotate a full 360 degrees even when legs are set in the narrow position, and up to 15 m of horizontal outreach can be achieved in wide set.
Strength and rigidity are a standout feature of this machine; the first time you take this one up off the ground you come back wearing a very wide smile. It has to be experienced to believe how stable this platform is, making it ideal for the most demanding of applications.

2019 PLATFORM BASKET MONITOR 2714 D - 27M SPIDER LIFT

The Waimea E290PX truck mounted lift is built
to accommodate 2 persons and tools with a
maximum rate capacity of 220 kg.

GSR MONITOR GSR E290PX TRUCK MOUNTED BOOM LIFT - PRICE DOES NOT INCLUDE THE TRUCK

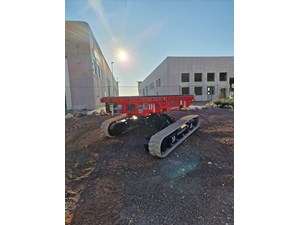

"The TC1 carrier is the solution for horizontal transport of long, heavy construction material and equipment at a project site.
The carrier is compact and just 80cm wide, and material can be placed on it lengthways or widthways. The radio remote controlled carrier is perfect for transporting material, such as steel beams, through small access doors and less easily accessible areas.
No more heavy lifting for your personnel. Ergonomic, efficient and safe!
TC1 Key Features:
- Compact, strong and robust
- Precisely maneuverable
- Easy to attach load
- Extendible platform
- Silent thanks to electric drive
- Rotating platform

HOEFLON HOEFLON TC1 - TRACKED CARRIER

The new Winlet 1000 Crawler, a bi-leveling machine built to tackle
rough terrain with ease.
This superior machine takes glazing to a whole new level! Allowing
glaziers to transport their heavy glass panels up & down 15° slopes,
indoors or outdoors and install them safely, easily and more efficiently.
This machine is designed to start where all other glass lifts must give
up.
Weighing in at 2,980kg.
The bi-leveling system on the Winlet 1000 Crawler means that this
machine is able to level up 15° longitudinally & 14° latitudinally at the
same time, allowing a glazier to work on steep slopes with maximum
control over the installation of large glass panels.
Like the Winlet 1000, the Winlet 1000 Crawler has a 3 stage
telescopic boom allowing the machine to reach a maximum of 5.1m of
vertical reach

2022 WINLET 1000 CRAWLER

The Hoeflon C1e Spider Crane is our smallest powerhouse lifts up to 550 kg.

2023 HOEFLON C1E - HOEFLON SPIDER CRANE

Sitting on a Hyundai EX8 7.8t GVM truck with auto gearbox, the Waimea T320 is a versatile 20m telescopic truck mounted EWP

2021 SOCAGE T320

Commission Date: 21/1/2022
The 2095 is the best performing Spider Lift in its class. With a 250kg basket capacity, the Monitor 2095 has an incredible unrestricted reach of 19.4 m vertically, and 9.5 m horizontally. This provides the operator with superb up and over reach.
Additionally, the 2095 has an excellent ability to level up on 20° slopes, which compliments the machines Auto Level feature.
The Monitor 2095s Remote Control Unit also provides the operator with smooth proportional functions and allows the operator to move into tight access situations with ease. At only 790 mm wide, 4870 mm long and 1990 mm high, the 2095 has the ability to navigate through a single door. A Hybrid option also provides the MONITOR 2095 ability to work safely and effectively indoors.
Built for rough terrain applications, the 2095s expandable tracks provide greater stability which also improves this units impressive ground clearance. Two speed drive also allows the operator to move the machine quickly from job to job.

2021 PLATFORM BASKET MONITOR 2095 LBD - 20M HYBRID SPIDER LIFT

Commission Date: 24/Aug/2021
The Winlet 575 combines superior lifting capacity and reach with a unique and compact design. Only with the 575 can you handle heavy elements up to 575kg taking it across difficult terrain and through narrow doorways.
The Live Parallel Front makes the load mobile in all directions. The fine lifting function in the tower offers hydraulic power to the 200 mm parallel lift
and lower, and the 100 mm parallel side-shift. This gives you more detailed control and is brilliant when panels need to be installed behind obstacles such as scaffolding and safety rails, or for channel and slot glazing. Hydraulic powered 180 degree rotation of the front and gyro function makes accurate final installation safer and easier than you would have ever thought possible.
The Winlet 575 is extremely agile and easy to move. The powerful front wheel drive effortlessly copes with ramps, platforms and uneven subsoils. The 575 is at home both inside and outside on the building site. Especially tricky assignments can be mastered convincingly and far safer and easier way than with other methods. Overhead mounting is also no problem for the advanced Winlet 575.

2021 GMV WINLET 575 - 575KG GLASS HANDLING MACHINE

Omme 18m Spider Lift  10m of horizontal reach with 230kg SWL  Class leading performance!

2017 OMME MONITOR 1800RX - 18M SPIDER LIFT - IN STOCK NOW

Commission Date: 21/07/2021
The robust and powerful Monitor 2100E, designed by OMME® provides a strong and stable operating platform, and is a versatile Trailer Mount Lift.
It gives increased outreach over obstacles. Comes with easy and intuitive controls, while the hydraulic outrigger legs on this machine provide it with the ability to set up on uneven terrain.
With its short travel length, it is ideal for maneuverability and weighing only 2.7T can be towed behind most vehicles.
The Monitor 2100Es high quality strong steel boom sections provide a sturdy stable work platform at full height. With its hydraulic self-propulsion, it allows access to difficult locations with added efficiency and simplicity.
Its stick boom configuration makes it possible to operate in tough environments and provides the operator with excellent outreach.

2020 OMME MONITOR OMME 2100 EP - 21M TRAILER MOUNTED LIFT

Monitor Lifts Winlet Lasius 1000kg Pick & Carry crane!
Winlet Lasius opens up new opportunities for lifting, handling and carrying heavy objects. With a lifting capacity of no less than 1,000 kg it is ideal as a Pick & Carry crane in a wealth of different situations. As it can work in- and outdoors on a fi rm surface, making it ideal for construction and industry.
NEW OPPORTUNIITIES NEW SAVINGS
The Winlet Lasius range gives traditional crane and handling solutions tough competition. Unique performance means savings in time and invested capital. Winlet Lasius is ideal for:
Erecting steel beams and other building elements
Glass and façade installation
Machine assembly
Repair work
Packing of non-palletized goods in containers
COMPACT DESIGN
Winlet Lasius is ideal for contractors, installation specialists, industrial companies and on construction sites, where its compact and streamlined design really win points in comparison with other products on the market. The compact design makes it possible to reach where other heavier and bigger machines have to give up, due to their physical size, footprint, turning radius or low lifting capacity on the move.
Winlet Lasius runs with a max. permitted speed of 4.2 kph - double that of mini cranes on tracks for example, and neither does it need to be levelled by outrigger legs like most mini cranes. Because the Winlet Lasius is battery-powered and therefore does not emit harmful exhaust gases, it can be used indoors with no environmental problems.

2023 GMV LASIUS 1000 - 1000KG PICK & CARRY CRANE

Brand New RR9/200 Rail Boom Lift:
Built from the ground up as a Rail machine, the RR9/200 is one of a kind.

PLATFORM BASKET MONITOR - RR9/200 RAIL BOOM LIFT
